Simulator

The simulator used in the design of the Social Gravity trials simulates the movement of pedestrian towards a fixed target, or towards a dynamic centroid. Factors such as the level of GPS noise, the coarsness of feedback, the quality of inertial sensor data, environmental constraints and walking paramaters can all be adjusted. The script can show the results interactively, or can run batch trials, compute summary statistics and generate a PDF report, complete with graphs.

An example report is shown here (2Mb). Note that the simulator always writes all of the simulation parameters into the report, so that the results are reproducible.

Requirements and installing

The package can be downloaded here (42Kb).

Unzip to a directory and start gui.py to bring up the interface.

Python is required Python, along with the following packages: PyGame, NumPy and Matplotlib. It also requires a LaTeX installation to generate reports. On Windows, MikTex is suitable.

Using

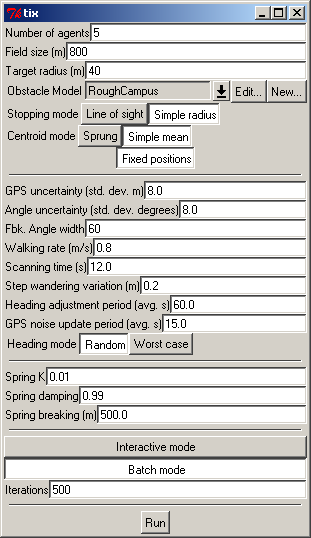

On running gui.py the following interface will appear:


The simulator can be run in either interactive mode by selecting the "interactive mode" option and then pressing "Run", or in batch mode, by selecting "batch mode". The "batch mode" will generate a PDF report file (eventually).

Interactive mode

Running in interactive mode will produce a display like this:
where the movement of the agents can be seen in real time. The small yellow circles represent the true positions of the agents. The red circles represent the position with GPS noise added; the pie shapes indicate the angular range in which feedback will be generated. A distance scale is shown at the bottom.

Parameters

The parameters have the following meanings. All units are meters, seconds and degrees.

• Number of agents: self explanatory
• Field size: width of the area in which agents move
• Target radius: radius inside which convergence is considered to have happened
• Obstacle model: allows modelling solid obstacles. You can either select one, or create or edit a new model.
• Stopping mode: if simple radius will stop when all agents are inside target radius. In line of sight mode, all agents must also be able to see each other (i.e. obstacles are taken into account).
• Centroid mode: Sprung -- use spring model for centroid computation
• Simple mean -- use simple geometric mean of points for centroid
• GPS Uncertainty: std. dev. of position noise (Gaussian noise)
• Angle uncertainty. std. dev. of angular noise (from sensing). (Gaussian noise)
• Fbk angle width: width of target as displayed to user (e.g. if width=60, user will hear on-target sound when target is within 60 degrees of current heading)
• Walking rate: in m/s
• Scanning time: Time taken to find a new heading after stopping to find one.
• Step wandering variation: Randomness in walk behaviour in meters (0 = walk in straight lines)
• Heading adjustment period: Time at which users check device to see if they are still on target. This is probabilistic, with average time given here.
• GPS noise update period: Time when GPS positional offset jumps. Again, random with this average time.
• Heading mode: random -- always choose any random angle which is compatible with fbk (i.e. within fbk angle width) worst -- always choose the worst possible case (i.e. walk along the edges of the feedback "code")
• These following paramters only have effect if centroid mode is "sprung"
  • Spring K: strength of spring attraction
  • Spring damping: damping of spring
  • Spring breaking length: length at which agents break free of the centroid
• Iterations: Number of runs to execute in batch mode. Not used if interactive mode is chosen.
