predictive_variance_example.m

From A First Course in Machine Learning, Chapter 2. Simon Rogers, 01/11/11 [simon.rogers@glasgow.ac.uk] Predictive variance example

clear all;close all;

Sample data from the true function

$y = 5x^3-x^2+x$

N = 100; % Number of training points
x = sort(10*rand(N,1)-5);
t = 5*x.^3 - x.^2 + x;
noise_var = 300;
t = t + randn(size(x)).*sqrt(noise_var);

% Chop out some x data
pos = find(x>0 & x<2);
x(pos) = [];
t(pos) = [];

testx = [-5:0.1:5]';

Plot the data

figure(1);
hold off
plot(x,t,'k.','markersize',10);
xlabel('x');
ylabel('t');

Fit models of various orders

orders = [1:8];
for i = 1:length(orders)

    X = [];
    testX = [];
    for k = 0:orders(i)
        X = [X x.^k];
        testX = [testX testx.^k];
    end
    w = inv(X'*X)*X'*t;
    ss = (1/N)*(t'*t - t'*X*w);
    testmean = testX*w;
    testvar = ss * diag(testX*inv(X'*X)*testX');
    % Plot the data and predictions
    figure(1);
    hold off
    plot(x,t,'k.','markersize',10);
    xlabel('x');
    ylabel('t');
    hold on
    errorbar(testx,testmean,testvar,'r')
    ti = sprintf('Order %g',orders(i));
    title(ti);

end

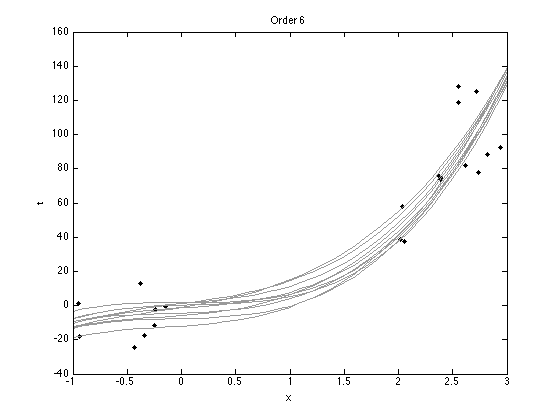

Plot sampled functions

orders = [1:8];
path(path,'../utilities');
for i = 1:length(orders)

    X = [];
    testX = [];
    for k = 0:orders(i)
        X = [X x.^k];
        testX = [testX testx.^k];
    end
    w = inv(X'*X)*X'*t;
    ss = (1/N)*(t'*t - t'*X*w);

Sample functions by sampling realisations of w from a Gaussian with

$\mu = \hat{\mathbf{w}},~~\Sigma = \sigma^2(\mathbf{X}^T\mathbf{X})^{-1}$

    covw = ss*inv(X'*X);
    wsamp = gausssamp(w,covw,10);
    testmean = testX*wsamp';
    % Plot the data and functions
    figure(1);
    hold off
    plot(x,t,'k.','markersize',10);
    xlabel('x');
    ylabel('t');
    hold on
    plot(testx,testmean,'k','color',[0.6 0.6 0.6])
    xlim([-1 3])
    ti = sprintf('Order %g',orders(i));
    title(ti);

end


Published with MATLAB® 7.12
