logmap.m

From A First Course in Machine Learning, Chapter 4. Simon Rogers, 01/11/11 [simon.rogers@glasgow.ac.uk] Finding the MAP parameter value using logistic regression

clear all;close all;

Load the classification data

load ../data/logregdata

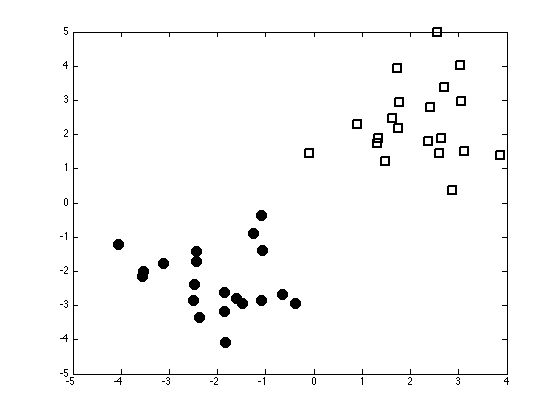

% Plot the data
figure(1);hold off
plot(X(1:20,1),X(1:20,2),'ko','markersize',10,'markerfacecolor','k')
hold on
plot(X(21:40,1),X(21:40,2),'ks','markersize',10,'linewidth',2)

Initisliase the parameters

w = repmat(0,2,1); % Start at zero
tol = 1e-6; % Stopping tolerance
Nits = 100;
w_all = zeros(Nits,2); % Store evolution of w values
ss = 10; % Prior variance on the parameters of w
change = inf;
it = 0;
while change>tol & it<=100
    prob_t = 1./(1+exp(-X*w));
    % Gradient
    grad = -(1/ss)*w' + sum(X.*(repmat(t,1,length(w))-repmat(prob_t,1,length(w))),1);
    % Hessian
    H = -X'*diag(prob_t.*(1-prob_t))*X;
    H = H - (1/ss)*eye(length(w));
    % Update w
    w = w - inv(H)*grad';
    it = it + 1;
    w_all(it,:) = w';
    if it>1
        change = sum((w_all(it,:) - w_all(it-1,:)).^2);
    end
end
w_all(it+1:end,:) = [];

Plot the evolution of w

figure(1);hold off
plot(w_all);
xlabel('Iterations');
ylabel('w');

Plot the probability contours

figure(1);hold off
plot(X(1:20,1),X(1:20,2),'ko','markersize',10,'markerfacecolor','k')
hold on
plot(X(21:40,1),X(21:40,2),'ks','markersize',10,'linewidth',2)
[Xv,Yv] = meshgrid(-5:0.1:5,-5:0.1:5);
Probs = 1./(1+exp(-(w(1).*Xv + w(2).*Yv)));
[cs,h] = contour(Xv,Yv,Probs);
clabel(cs,h);
fprintf('\nProbabilities are probabilities of belonging to the square class');

Probabilities are probabilities of belonging to the square class
